Field Data Aquision Unit
Debug

&counter([total|today|yesterday]); - 0 - 0 - 1

おしらせ
スケルトンのコンパイル
RTCの動作確認
ADCの動作確認
EEPROMの動作確認
ARPおよびICMPの動作確認

WiViCom
FdauHard
FdauDevel
ToppersDevel
TinetDevel
TinetDevelNserv
FdauMes
FdauMesSrc
AkiMes
AkiToppers
ToppersLicense
TOPPERS本家
ITRON TCP/IPの仕様書

おしらせ†

TOPPERSカーネルをアップデート1.4.1
TINETをアップデート1.2.1

スケルトンのコンパイル†

JSP Kernel Release 1.4 (patchlevel = 1) for AKI-H8/3069F (Oct 22 2004, 14:43:23)
Copyright (C) 2000-2003 by Embedded and Real-Time Systems Laboratory
                            Toyohashi Univ. of Technology, JAPAN

System logging task is started on port 2.
[CONSOLE:9] started.
[ETHER INPUT: 5] started on MAC Addr: 00:02:cb:01:74:db.
[ETHER OUTPUT:4] started.

TINET Release 1.2 for JSP Kernel Release 1.4 (Oct 22 2004, 14:41:31)
Copyright (C) 2001-2004 by Dep. of Computer Science and Engineering
                    Tomakomai National College of Technology, JAPAN

[NET/TIMER:2] started.
[TCP OUTPUT:3] started.

RTCの動作確認†

JSP Kernel Release 1.4 (patchlevel = 1) for AKI-H8/3069F (Oct 22 2004, 14:43:23)
Copyright (C) 2000-2003 by Embedded and Real-Time Systems Laboratory
                            Toyohashi Univ. of Technology, JAPAN

System logging task is started on port 2.
%[CONSOLE:9] started.
[ETHER INPUT: 5] started on MAC Addr: 00:02:cb:01:74:db.
[ETHER OUTPUT:4] started.

TINET Release 1.2 for JSP Kernel Release 1.4 (Oct 22 2004, 14:41:31)
Copyright (C) 2001-2004 by Dep. of Computer Science and Engineering
                    Tomakomai National College of Technology, JAPAN

[NET/TIMER:2] started.
[TCP OUTPUT:3] started.

%rtcset                      //RTCに時刻を設定
year=04
month=10
day=26
hour=10
min=37
sec=35

%rtcget　　　　　　　　　　　//RTCから読み込み
2004/10/26 10:37:43 JST
%rtcget                      //もう一度読み込み(時刻が動いているのが分かる)
2004/10/26 10:38:06 JST
%                            //10分間の電源切断
JSP Kernel Release 1.4 (patchlevel = 1) for AKI-H8/3069F (Oct 22 2004, 14:43:23)
Copyright (C) 2000-2003 by Embedded and Real-Time Systems Laboratory
                            Toyohashi Univ. of Technology, JAPAN

System logging task is started on port 2.
%[CONSOLE:9] started.
[ETHER INPUT: 5] started on MAC Addr: 00:02:cb:01:74:db.
[ETHER OUTPUT:4] started.

TINET Release 1.2 for JSP Kernel Release 1.4 (Oct 22 2004, 14:41:31)
Copyright (C) 2001-2004 by Dep. of Computer Science and Engineering
                    Tomakomai National College of Technology, JAPAN

[NET/TIMER:2] started.
[TCP OUTPUT:3] started.


%rtcget                      //バッテリバックアップされている
2004/10/26 10:47:34 JST
%

バッテリバックアップ時間の実測が必要

ADCの動作確認†

チャネル7に2Vを印加

%adcget

ch.0   128
ch.1   128
ch.2   128
ch.3   128
ch.4   128
ch.5   128
ch.6   128
ch.7   27200

0～5V印加時のA/D値

EEPROMの動作確認†

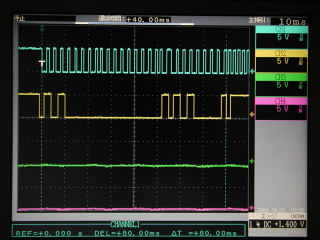

READ時
上段からSCL, SDA

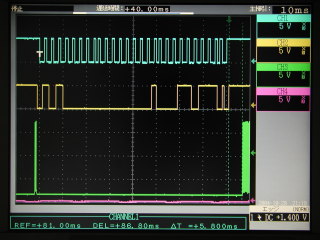

WRITE時
上段からSCL, SDA, TXD。WRITE終了後5msのウエイトが観測できた

ARPおよびICMPの動作確認†

FDAU(192.168.4.44)に対して、192.168.4.2からpingを送ったところ。

05:59:11.140813 arp who-has 192.168.4.44 tell 192.168.4.2
05:59:11.142523 arp reply 192.168.4.44 is-at 0:2:cb:1:74:db
05:59:11.142692 192.168.4.2 > 192.168.4.44: icmp: echo request
05:59:11.145996 192.168.4.44 > 192.168.4.2: icmp: echo reply
05:59:12.157036 192.168.4.2 > 192.168.4.44: icmp: echo request
05:59:12.159375 192.168.4.44 > 192.168.4.2: icmp: echo reply
05:59:13.167002 192.168.4.2 > 192.168.4.44: icmp: echo request
05:59:13.169358 192.168.4.44 > 192.168.4.2: icmp: echo reply
05:59:14.177078 192.168.4.2 > 192.168.4.44: icmp: echo request
05:59:14.179714 192.168.4.44 > 192.168.4.2: icmp: echo reply

FDAU(192.168.4.46)から、192.168.4.2にpingを送ったところ。

06:28:37.095566 arp who-has 192.168.4.2 tell 192.168.4.46
06:28:37.095800 arp reply 192.168.4.2 is-at 0:90:99:51:47:fc
06:28:37.097775 192.168.4.46 > 92.168.4.2: icmp: echo request
06:28:56.253064 192.168.4.46 > 192.168.4.2: icmp: echo request
06:28:56.253299 192.168.4.2 > 192.168.4.46: icmp: echo reply

FDAU(192.168.4.46)から、ルータ(192.168.4.2)を通して、219.96.212.110にpingを送ったところ。

06:29:07.870484 192.168.4.46 > 219.96.212.110: icmp: echo request
06:29:07.965997 219.96.212.110 > 192.168.4.46: icmp: echo reply
